How to Plan a Barbed-Wire-Topped Perimeter Without Missing the Critical Details

By Nora Castellan · July 30, 2026

A chain link fence with barbed wire is not simply an ordinary fence with several strands added at the end. It is a complete perimeter system in which the fabric, posts, rails, foundations, braces, gates, support arms, terminal anchors, wire, fasteners, and installation method must work together.

That distinction matters whether the project is a new commercial perimeter or a retrofit at a self-storage, industrial, utility, or controlled-access property. An arm that fits a line post may not suit a corner. An apparently sound fence may have unstable footings. An angled arm may cross a property line. A low advertised wire price may omit most of the installed system.

The responsible planning order is:

Establish whether the proposed fence is permitted.
Verify the boundary and exposure conditions.
Measure the actual framework.
Match fittings to every post’s function.
Assess structural condition and retrofit feasibility.
Define a safe installation method.
Obtain a complete material and labor scope.
Plan inspection and repair before the fence enters service.

This article is a planning guide, not a code-compliant design, engineering specification, or substitute for the selected manufacturers’ instructions. Local authorities, product suppliers, qualified fence contractors, and engineers should resolve project-specific legal, compatibility, tension, and structural questions.

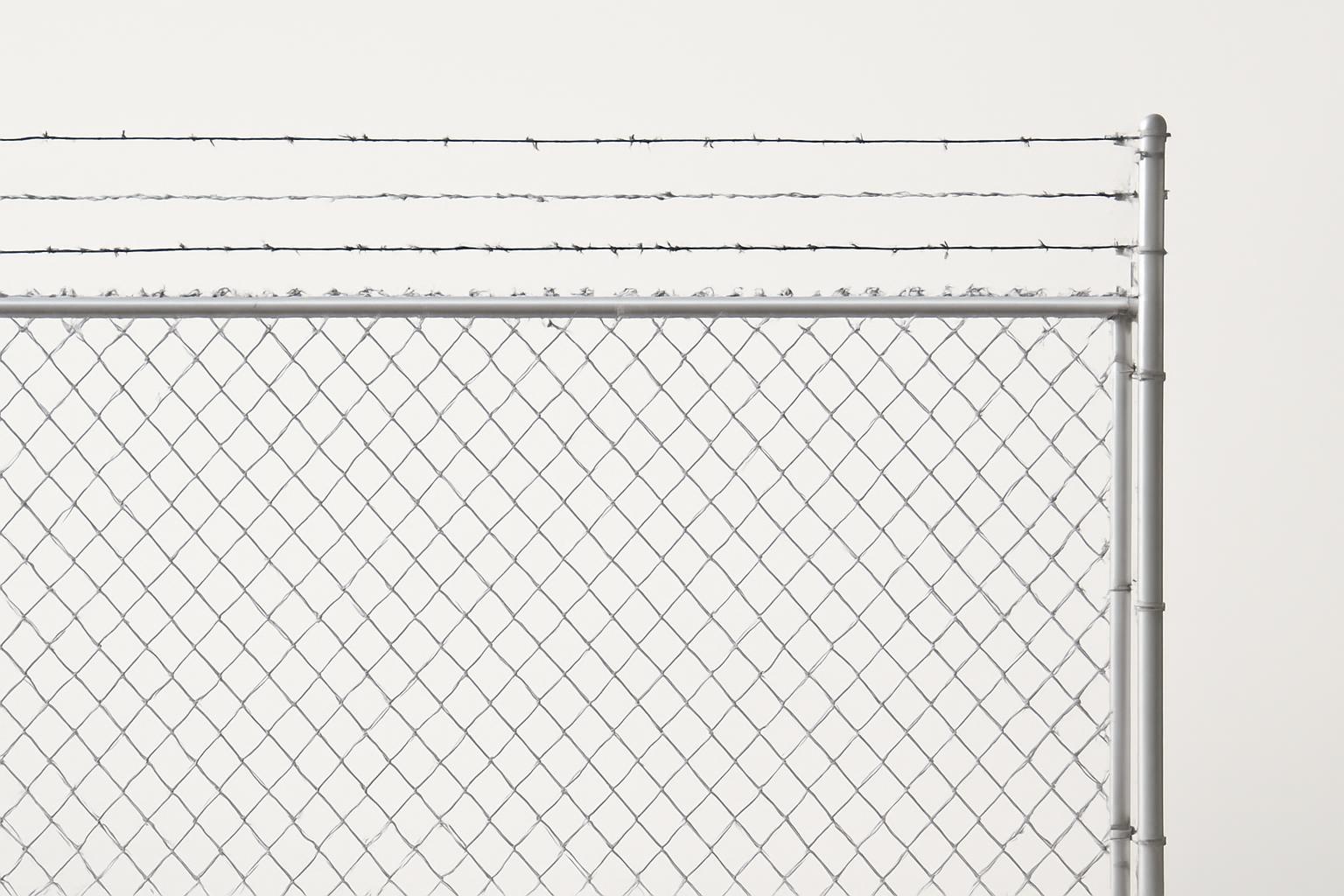

What a barbed-wire-topped chain-link fence includes

The base system consists of chain-link fabric supported by line, terminal, corner, brace, and gate posts. Conventional barbed-wire strands run above the fabric on arms or extensions attached to those posts. The arrangement changes at intermediate supports, ends, corners, gates, changes in grade, and other termination points.

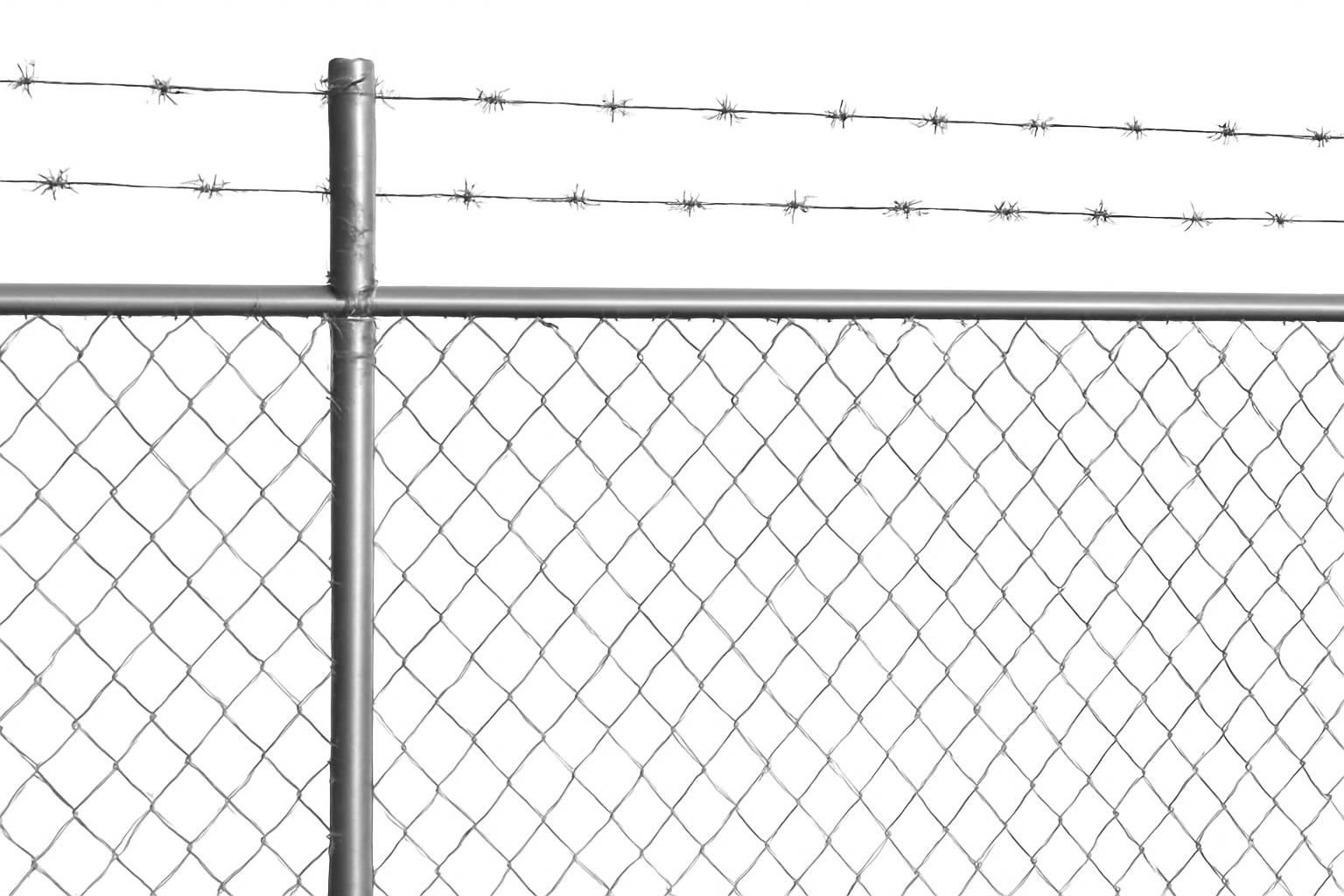

A common line-post arm functions much like a post cap. It fits over the post, provides an opening for the top rail, and includes slots or attachment points for the wire. Commercial catalogs also show straight or vertical arms, approximately 40- to 45-degree arms, V-shaped arms, double-sided arrangements, extensions, bolt-on fittings, clamp-on retrofit arms, and hardware intended for corners or gates. The dimensions and mounting details vary by product, as illustrated by this catalog of chain-link barbed-wire arms.

Arm shape is primarily a geometry and compatibility decision:

Straight or vertical arms keep the strands broadly over the fence line, subject to the product’s dimensions.
Single-angle arms project the strands to one side of the framework.
V-shaped or double-sided arms carry wire on both sides.
Terminal-specific arms provide a connection at the start or end of a run.
Extension arms raise the supporting portion above an existing post.

“Universal” does not mean a fitting will fit every post, rail, gate, or loading condition. Procurement should be based on the dimensional drawing and mounting instructions for the exact part.

Commercial listings document fittings intended for three or six strands, but neither count is universally correct. The choice must reflect the perimeter objective, documented strand capacity of the selected fitting, framework and terminal suitability, wire specifications, gate and corner details, and local restrictions.

Line-post support and terminal anchoring are different jobs. Intermediate arms support strands between anchors, while the ends transfer tension into terminal assemblies. An end may therefore require a terminal arm, an extended terminal post, brace bands, end bands, braces, or another product-specific arrangement. Corners need treatment appropriate to the change in direction, and gate posts may already carry substantial gate-related loads.

Galvanized framework, fabric, fittings, and wire are widely sold. Coated chain-link products and other metal or coating combinations are also available. Availability does not establish suitability or guarantee service life.

Barbed-wire-topped fencing appears in commercial and controlled-access catalogs, but that context does not prove that it is appropriate or permitted at every commercial property. A customer-facing storage facility, for example, creates different access and exposure questions from a remote industrial boundary.

Clear the legal, boundary, and site-safety checks first

Treat legality and site control as a decision gate, not an issue to investigate after materials arrive.

Before measuring arms or requesting prices, contact the authority having jurisdiction over the property. Ask about zoning, fence or building permits, allowable fence types, total height, setbacks, visibility requirements, placement near roads or intersections, and restrictions specifically applicable to barbed wire. Review deed restrictions and determine whether a surveyed property line is necessary. General chain-link preconstruction guidance likewise calls for checking permits, zoning, deed restrictions, setbacks, property lines, and buried utilities before work begins (Hoover Fence installation manual).

No national permission rule can be inferred from product catalogs. Requirements may depend on the city or county, zoning classification, property use, fence location, total height, relationship to public areas, and other site-specific facts. Written project requirements take precedence over customary trade practice or a retailer diagram.

Boundary placement deserves particular attention because an angled arm can project beyond the vertical plane of the fence. Even when every post is inside the property, an arm or strand may extend over:

Neighboring land
A sidewalk or customer circulation route
A road or alley
A utility or access easement
A public right-of-way
A drainage area
Space needed for maintenance or emergency access

Determine the full horizontal projection of the proposed assembly, not just the post location. Confirm whether inward or outward projection is permitted and whether the entire assembly must remain within the approved boundary. One supplier says its 45-degree arms can physically face either side of a fence, but that product option does not establish permission for either orientation at a particular property (product-specific 45-degree arm listing).

Use this preconstruction checklist:

Verify the surveyed boundary and applicable setbacks.
Confirm the allowable fence type, total height, location, and arm projection.
Determine whether permits or plan review are required.
Identify ends, corners, gates, emergency openings, and access-control equipment.
Check deed restrictions, lease terms, and landlord-approval conditions.
Ask the property insurer whether notice, design, inspection, or documentation conditions apply.
Review fire-department, emergency-access, and site-specific security requirements.
Identify where customers, tenants, employees, contractors, children, or animals could approach the fence.
Ask whether warning signs are required and, if so, what wording, language, size, and placement are acceptable.
Locate easements, sidewalks, roads, drainage paths, and neighboring improvements.
Contact 811 before digging for new posts, replacement posts, braces, or anchors.
Record the authority, contact, date, and answer for every approval question.

Installations beside schools, sidewalks, homes, customer parking, loading areas, animal enclosures, or emergency routes warrant heightened review. The question is not merely whether the fence can be built, but whether people could unexpectedly encounter sharp wire during ordinary use, maintenance, evacuation, or emergency response.

Lease, landlord, insurer, and facility-security obligations are separate from government permission. Resolve each layer before committing to hardware.

Measure the framework and match every fitting to its job

Do not order arms based only on fence height. The critical information includes the outside diameters of posts and rails, the role of each post, mounting method, documented strand capacity, and the direction and reach of the arm.

Create a worksheet before requesting a quote:

Field	Measurement or decision
Existing or proposed fence height
Total run length by segment
Chain-link fabric specification
Line-post outside diameter
End-post outside diameter
Corner-post outside diameter
Brace-post outside diameter
Gate-post outside diameter
Top-rail outside diameter
Gate opening and leaf dimensions
Number and location of ends
Number and angle of corners
Terminal locations
Grade or elevation changes
Drainage or ditch crossings
Existing bracing locations
Surface-mounted or embedded posts
Desired arm direction
Proposed strand count
Required finish or coating
Boundary clearance at full projection

Measure each post type rather than assuming that every post has the same diameter. Distinguish actual outside diameter from nominal pipe terminology. Partial replacement of an older system may also reveal mixed framework sizes or previous repairs.

For a concrete compatibility example, one 45-degree arm listing offers nominal post selections of 1 5/8, 2, 2 1/2, and 3 inches, each paired on that page with a 1 5/8-inch top rail. Those dimensions apply to that listed product and should not be converted into a general compatibility rule (Hoover Fence product listing).

For every proposed arm, verify:

Compatible post outside diameter
Compatible top-rail outside diameter
Whether the rail passes through the arm
Intended line, terminal, corner, brace, or gate-post application
Slip-on, bolt-on, weld-on, clamp-on, or other mounting method
Documented number of supported strands
Attachment-slot or clip arrangement
Straight, inward, outward, or double-sided projection
Overall height and horizontal reach
Required bands, bolts, caps, ties, or clips
Material and finish
Manufacturer instructions and available technical information
Compatibility with the wire, fasteners, and adjacent metals

A line-post arm cannot automatically be transferred to an end, corner, or gate post. Terminal posts must anchor strands, not merely hold them at the right elevation. The selected system may call for a terminal-specific arm or an extended post fitted with brace bands. At corners, the connection must address the change in direction. At gates, supports must remain compatible with the frame and preserve clearance throughout the full swing or travel path.

The likely bill of materials includes more than the conspicuous components:

Chain-link fabric
Line, terminal, corner, brace, and gate posts
Top rail and rail ends
Bottom tension wire, where specified
Tension bars and bands
Brace rails and associated hardware
Conventional barbed wire
Line-post barbed-wire arms
Terminal and corner attachments
Gate-specific arms or supports
End or brace bands
Bolts, clips, ties, and fasteners
Concrete for embedded posts
Base plates and surface anchors where applicable
Gate frames, hinges, latches, rollers, tracks, or operators
Warning signs
Tensioning and handling tools
Compatible coating-repair materials
Replacement parts and spare fasteners

Straight, single-angle, and V-shaped arms should be selected according to geometry, permitted projection, strand arrangement, framework suitability, and product specifications. Catalog presentation alone does not prove that one configuration produces a measurable security improvement over another.

Avoid building a cross-brand compatibility chart from product names. Different sellers may use the same terminology for fittings with different socket dimensions, rail openings, mounting holes, angles, or intended post roles. Base procurement on exact part numbers, dimensional drawings, and written confirmation.

Can the existing fence support a retrofit?

Clamp-on, bolt-on, extension, and other retrofit arms are commercially available. Their availability proves that retrofit products exist, not that a particular fence can safely accept them.

A retrofit places additional components and tensioned wire above an existing framework. Whether the posts, foundations, rails, terminals, braces, and gates are suitable must be evaluated for that specific fence. The work may also reveal defects that were less apparent before the retrofit was proposed.

Use a pass-or-refer assessment before buying materials.

Inspect the posts

Is there substantial corrosion, pitting, or visible section loss?
Is the protective coating missing or damaged?
Are posts bent, crushed, split, patched, or visibly out of plumb?
Do posts move when appropriately assessed?
Are their diameters and wall specifications known?
Is there enough intact surface for the selected fitting to attach firmly?

Inspect the foundations

Is concrete cracked, loose, displaced, or separating from the post?
Has erosion, impact, frost, or other movement visibly shifted the footing?
Are surface anchors loose, corroded, or pulling from the slab?
Are the footing dimensions and condition known where capacity is important?

Inspect rails and bracing

Is the top rail bent, disconnected, substantially corroded, or incompatible with the new arm?
Are rail ends and brace bands secure?
Are braces present at terminal assemblies and other specified locations?
Do long runs or corners show visible movement or inadequate restraint?

Inspect terminals and gates

Are end and corner assemblies stable?
Can terminal hardware accept the proposed anchoring arrangement?
Are gate posts leaning or moving?
Will the new support interfere with hinges, rollers, latches, tracks, operators, or required clearance?
Does the gate create loading or operating conditions that require professional evaluation?

Inspect the site

Is there adequate clearance for the arm’s full projection?
Do grade changes alter the wire height or support geometry?
Could vegetation, drainage, snow, or maintenance operations contact the wire?
Would a failure expose customers, tenants, workers, neighbors, or road users?

Proceed only after confirming that each fitting can attach firmly and that the posts, foundations, rails, terminals, braces, and gates are suitable for the proposed system. A visually intact line post does not establish the condition of its footing, a corner assembly, a gate post, or an entire run.

Refer the project to a qualified fence contractor or engineer when post specifications are unknown, footings move, corrosion is substantial, long runs lack clear bracing, grades are difficult, gates are heavy, previous damage is evident, or structural questions remain unresolved.

Do not adopt universal spacing or embedment dimensions from a retail guide. One retailer describes typical chain-link post spacing of no more than 10 feet, while a North Carolina highway detail shows typical line-post spacing of 10 to 12 feet or as directed by an engineer. The same NCDOT chain-link fence with barbed-wire drawing coordinates specific post diameters, bracing, gates, ties, embedment, and drainage-crossing treatment. Its dimensions belong to that agency’s project context and are not a general commercial or residential specification.

Where foundation, spacing, or framework capacity requires a structural determination, a catalog diagram is not a substitute for project-specific evaluation.

The installation sequence and the details that complicate it

The sequence depends on the selected products and on whether the work is new construction or a retrofit. At a planning level, the work generally follows this order:

Confirm approvals, boundaries, arm direction, and access controls.
Lay out the new framework or document the existing fence’s condition.
Set, replace, or brace suitable posts where required.
Install compatible post fittings and arms.
Insert or reconnect the top rail.
Install, stretch, and tie the chain-link fabric.
Prepare the specified terminal anchoring hardware.
Pay out each barbed-wire strand under control.
Anchor and gradually tension each strand.
Seat or secure strands at the intermediate supports.
Complete the specified details at corners, gates, grades, and crossings.
Inspect every post, fitting, fastener, strand, gate, and clearance.

Supplier guidance places barbed-wire stretching after the framework, top rail, and chain-link fabric are installed or assessed. This sequencing point matters because the arms and terminal arrangements must be integrated with the completed fence rather than treated as unrelated accessories.

Terminal treatment is product-specific. America’s Fence Store describes one three-strand procedure using end bands and at least four tightly wound wraps around the wire itself. The same retailer describes a wire grip and come-along method in which the grip is positioned approximately 10 feet from the terminal. These are examples from that seller’s procedure, not universal instructions for every wire, span, fitting, or terminal assembly (America’s Fence Store installation procedure).

The objective is controlled tension according to the selected product’s instructions—not maximum tightness. Excessive tension can stress posts or contribute to wire failure, while an inadequately secured strand may remain excessively slack. The supplied evidence does not establish a universal force or visual sag value. Obtain written tensioning and anchoring instructions for the exact wire and fittings being installed.

Plan the following conditions separately:

Corners: Determine whether strands terminate, continue, or use dedicated corner fittings.
Grade changes: Confirm that strands remain supported without unsafe low points or unsuitable bends.
Gates: Specify gate-compatible supports and check clearance throughout the complete movement of each leaf or sliding assembly.
Drainage crossings: Address changing ground clearance, erosion, debris, and maintenance access through a project-specific detail.
Long runs: Review terminal suitability, bracing, payout control, and the practical limits of the specified tensioning equipment.
Surface-mounted sections: Verify the substrate, base plate, and anchor design instead of assuming that an embedded-post detail applies.
Transitions: Detail changes in fence height, arm direction, framework size, or adjoining fence type.

Engineered project drawings commonly coordinate these elements as a system. The NCDOT example, for instance, combines post and rail dimensions with ties, bracing, gates, right-of-way placement, and ditch crossings instead of treating the top wire as an isolated accessory.

Qualified installation is prudent when the work involves public exposure, elevated access, long runs, uncertain foundations, complex or powered gates, difficult terrain, drainage crossings, substantial retrofit work, or unresolved structural requirements.

Control the sharp-wire and stored-energy hazards

Barbed-wire work presents two principal hazard categories: direct contact with sharp barbs and cut ends, and sudden wire movement during payout, tensioning, cutting, or failure.

Barbs and cut ends can cause serious cuts or punctures. A restrained or tensioned strand can also move unexpectedly if a grip slips, a fitting breaks, an anchor moves, or a roll begins to uncoil. Retail installation guidance calls for gloves, eye protection, controlled handling, and continuous control of the wire during these operations (America’s Fence Store safety guidance).

Use protective equipment appropriate to the work, including thick or heavy-duty gloves, safety glasses, and protective clothing. Use tools designed for the selected wire and keep the roll restrained during payout. Supplier guidance also warns against over-tightening because it may stress posts or cause wire failure (barbed-wire-arm installation guide).

Establish a controlled work zone:

Keep customers, tenants, children, animals, and uninvolved workers away.
Restrict access on both sides where wire or tools could move.
Keep the roll restrained and control payout continuously.
Avoid standing in the likely path of a strand, grip, or tensioning tool if it releases.
Position tools so they cannot fall or become caught in the wire.
Use an appropriate, secured method of elevated access.
Protect nearby vehicles, windows, equipment, and pedestrian routes.
Stop if an arm, post, anchor, fitting, grip, or tool moves unexpectedly.
Do not continue with damaged or mismatched tensioning equipment.
Control every cut end before releasing it.
Account for all offcuts and discarded fasteners at the end of the work period.

Collect sharp scraps in a puncture-resistant container or another controlled disposal system appropriate to the site.

Warning signs may alert people to hazardous wire, but the authority having jurisdiction should determine whether signs are mandatory and whether wording, language, size, visibility, or placement is regulated. Signs supplement physical controls; they do not make an illegal location or unsafe public exposure acceptable.

Retailer procedures can explain how a seller handles particular wire and fittings. They do not establish framework capacity, provide an occupational-safety standard, or make tensioning suitable for an inexperienced installer. Use professional help when appropriate grips, tensioning tools, protective equipment, access control, or safe elevated-work methods are unavailable.

Build a complete budget and choose materials for the site

A credible budget separates the full perimeter system into cost categories. Do not multiply the advertised wire price by the fence length and treat the result as the project cost.

Include:

Chain-link fabric
Line, terminal, corner, brace, and gate posts
Top rail and bottom tension wire
Barbed wire
Line-post arms
Terminal and corner assemblies
Gate-specific fittings
Braces, bands, bolts, clips, and ties
Gates and gate-operating hardware
Concrete, base plates, and surface anchors
Tensioning, cutting, handling, and access equipment
Freight and unloading
Taxes
Site preparation and vegetation removal
Labor
Permit, survey, or plan-review costs
Warning signs
Coating repairs
Initial inspection
Future inspection, retensioning, and damaged-wire replacement

Catalog snapshots demonstrate how fragmented pricing can be. One catalog displayed individual fittings from $3.81 to $48.25, depending on the fitting and size. A separate 45-degree arm listing displayed $7.15 to $15.79, depending on the selected nominal post size. These are volatile component-price examples, not complete or current installed-cost benchmarks.

Kit pricing can be incomplete as well. One commercial listing displayed a base price of $14.50 per foot and a $1.99-per-foot barbed-wire option, while requiring line, end, corner, and gate posts—and the gates themselves—to be purchased separately. Freight was calculated separately, and surface mounting required anchors that were not included (commercial chain-link kit listing).

Posted prices may change and may exclude shipping, taxes, substitutions, labor, excavation, concrete, anchors, permit work, unloading, or restoration. Compare written scopes rather than headline prices.

Material selection should begin with site exposure. Galvanized, zinc-alloy-coated, PVC-coated, powder-coated, and stainless products appear in the market, but the available evidence does not establish a universal service-life ranking. Ask:

Is the property exposed to coastal salt or salt spray?
Are humidity or standing moisture persistent?
Are industrial contaminants present?
Could snow or deicing chemicals contact the framework?
Will vegetation trap moisture against the wire?
Is coating damage likely from gates, tools, vehicles, or maintenance?
Are the selected metals, coatings, fasteners, and repair materials compatible?
Can damaged coatings be repaired using the product supplier’s specified method?
Are matching replacement parts likely to remain available?

A written bid or purchase order should identify:

Total quantity and run length
Fence and fabric specification
Post and rail sizes
Post roles and locations
Foundation or anchor method
Barbed-wire specification
Strand count
Arm configuration and projection
Terminal, corner, and gate treatment
Bracing
Finish and color
Included fasteners and accessories
Freight, unloading, taxes, and allowed substitutions
Labor and site work
Permits, surveys, and signs
Inspection or testing, if specified
Exclusions
Warranty terms and responsible party
Repair and maintenance provisions

A complete written scope is the best way to avoid comparing unlike systems or discovering after delivery that essential posts, gates, anchors, or terminal fittings were omitted.

Inspect the system and distinguish barbed wire from razor wire

Inspect before service and after disruptive events

Inspection begins when installation is complete. Walk the perimeter from both sides where access is permitted, operate every gate, and document the completed condition.

Check for:

Slack, displaced, or uneven strands
Broken wire or damaged barbs
Uncontrolled cut ends
Rust or coating failure
Loose clips, ties, bands, bolts, or clamps
Bent, rotated, or poorly seated arms
Post movement or loss of alignment
Cracked or moving concrete
Loose surface anchors
Damaged top rails or braces
Vegetation contacting or loading the wire
Debris caught in the strands
Sharp scraps beside the fence
Wire interfering with gate movement
Reduced clearance around hinges, latches, operators, and rollers
Changes in ground clearance following erosion or settlement
New exposure caused by nearby construction or changes in public access

Inspect periodically and after storms, vehicle impacts, vandalism, gate damage, construction activity, erosion, branch contact, or visible post movement. The evidence does not establish one interval suitable for every site; risk, exposure, product instructions, insurer conditions, and facility procedures should determine the schedule.

Treat repair work with the same caution as installation. Isolate the area before cutting, releasing, retensioning, or replacing components.

Do not confuse barbed wire with razor wire

Conventional barbed wire and razor wire are distinct products. Conventional barbed wire uses steel wire carrying sharp barbs, commonly in twisted-wire construction. Razor wire—also called barbed tape—uses sharpened or stamped metal strip or tape arranged around a core. One contractor’s description identifies razor wire as patterned steel tape compressed around a high-tensile wire (Hurricane Fence explanation).

Razor-wire products are sold in concertina coils, flat-wrap coils, straight-line forms, and mesh arrangements. They present different handling hazards, fittings, support requirements, installation complexity, and regulatory questions. Do not transfer a razor-wire installation method, material claim, hardware choice, or security assertion to conventional barbed wire.

Use a final stop-or-proceed test

Before the fence enters service, confirm:

Permission: Are local approval, height, placement, and projection resolved?
Boundary: Is the complete assembly inside the permitted area?
Measurements: Is every relevant post and rail diameter documented?
Compatibility: Are line, terminal, corner, and gate fittings confirmed?
Structure: Have posts, footings, rails, braces, and gates been found suitable?
Specification: Are strand count, wire type, finish, anchoring, and tensioning method defined?
Cost: Does the written scope include posts, gates, anchors, freight, labor, signs, and exclusions?
Safety: Are the work zone, tools, protective equipment, handling methods, and installer qualifications adequate?
Maintenance: Is responsibility for inspection and repair assigned?

If legality remains uncertain, contact the authority having jurisdiction. If compatibility or tensioning instructions are unclear, contact the supplier of the selected products. If installation or repair exceeds the available equipment and experience, use a qualified fence contractor. If framework or foundation capacity remains unresolved, consult an engineer rather than improvising from a catalog illustration.

Frequently asked questions

Can I add barbed wire to an existing chain-link fence?

Possibly, but the existence of retrofit arms does not establish that the fence can safely accept them. First inspect post corrosion, alignment, coating loss, footings, top rail, braces, terminal assemblies, gate conditions, fitting dimensions, and boundary clearance.

The posts must be sound, securely anchored, and compatible with fittings that can attach firmly. Terminal and corner assemblies must also be suitable for the proposed anchoring arrangement. Seek professional assessment when specifications are unknown, footings move, corrosion is substantial, gates are heavy, runs are long or poorly braced, or structural capacity is uncertain.

Should barbed-wire arms face inward or outward?

There is no universal answer. Some angled products can physically face either direction, but the permitted orientation depends on boundaries, setbacks, easements, sidewalks, roads, neighboring property, employee or customer exposure, and local rules.

Measure the arm’s full projection and obtain approval for the proposed orientation. Customary outward-facing installation is not a legal rule, while inward-facing installation may create operational hazards inside the property. The approved site plan and exact product requirements should control.

How many strands of barbed wire should a chain-link fence have?

Commercial fittings are sold for different strand counts, including three- and six-strand arrangements. No count is universally correct.

Choose the number according to the project objective, local approval, documented strand capacity and specifications of the selected fitting, framework and terminal suitability, gate and corner treatment, and wire instructions. Do not assume that adding strands produces a quantified security improvement without evidence specific to the proposed system.

How much does a chain-link fence with barbed wire cost?

There is no reliable universal per-foot figure. Total cost depends on fence height and length, framework sizes, gates, foundations, arm configuration, strand count, finish, site access, terrain, freight, labor, permits, and retrofit repairs.

Treat online fitting and kit prices as component snapshots. Obtain a written installed scope identifying fabric, posts, rails, wire, arms, terminal hardware, gates, braces, fasteners, concrete or anchors, freight, labor, permits, signs, exclusions, and warranty terms.

What is the difference between barbed wire and razor wire?

Conventional barbed wire uses steel wire carrying sharp barbs, often in twisted-wire construction. Razor wire or barbed tape uses sharpened metal strip or stamped blades arranged around a core.

Razor products may be supplied as concertina coils, flat-wrap coils, straight-line wire, or mesh. They involve different hazards, fittings, installation methods, and possible legal restrictions. Razor wire is not simply a stronger grade of ordinary barbed wire, and specifications for one system should not be transferred to the other.
